Het Tubulaire Koolstofstaal van de de Controleklep van de het Gaspedaal Hydraulische Druk van VRFU
Contact Persoon : Ina Chen
Telefoonnummer : 0086-15168536055
WhatsApp : +8615168536055
| Min. bestelaantal : | 1pc | Verpakking Details : | doos |
|---|---|---|---|
| Levertijd : | 5-30 werkdagen | Betalingscondities : | Western Union, T/T, L/C, D/P, Paypal |
| Levering vermogen : | 10000000 |
| Plaats van herkomst: | CHINA | Merknaam: | NBSANMINSE |
|---|---|---|---|
| Certificering: | ISO | Modelnummer: | RD/RV/RZ |
|
Gedetailleerde informatie |
|||
| Materiaal: | koolstofstaal | Druk: | 31.5MPA (315Bar) |
|---|---|---|---|
| Havengrootte: | M12X1.5, M18X1.5, M16X1.5, M22X1.5, M26X1.5, M30X2, M36X2, M45X2, M52X2, M24X1.5, G1/8,1/4,3/8,1/2,3 | Temperatuur: | 20-+80C |
| Hoog licht: | 31.5MPA hydraulische Kogelklephoge druk,Snelle Schakelaar Hydraulische Kogelklep,31.5MPA hydraulische Controleklep |
||
Productomschrijving

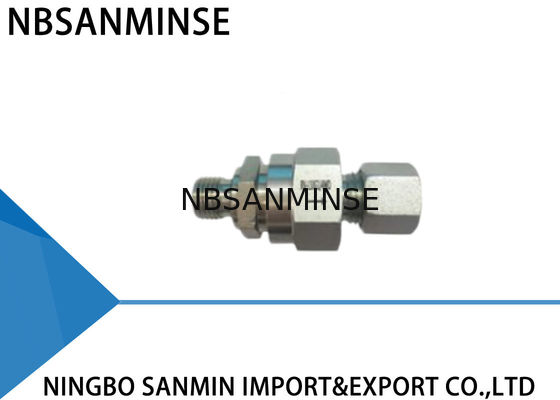

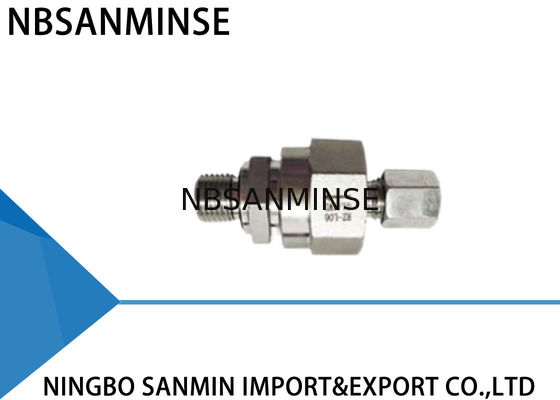

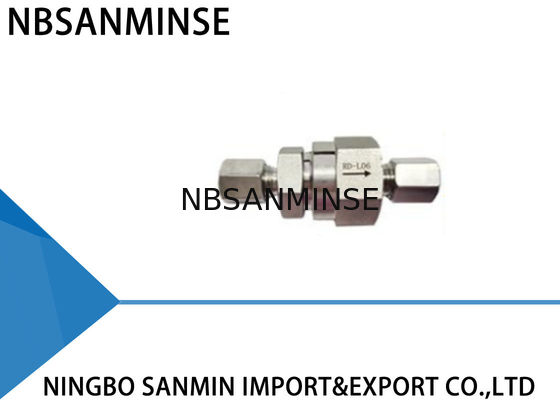

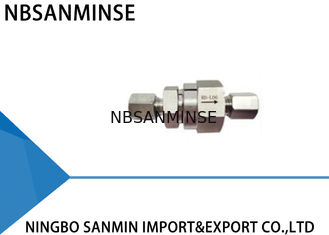

RD/RV/RZ van de Klepmini valve quick connector valve van de reekscontrole Hydraulische de Hoge drukklep
| RD | Draad | DN (mm) | L (min) | PN (bar) |
| Rd-L06 | M12X1.5 | 06 | 10 | 315 |
| Rd-L08 | M18X1.5 | 08 | 10 | |
| Rd-L10 | M16X1.5 | 10 | 15 | |
| Rd-L12 | M18X1.5 | 12 | 20 | |
| Rd-L15 | M22X1.5 | 15 | 45 | |
| Rd-L18 | M26X1.5 | 18 | 70 | 250 |
| Rd-L22 | M30X2 | 22 | 110 | |
| Rd-L28 | M36X2 | 28 | 160 | |
| Rd-L35 | M45X2 | 35 | 200 | |
| Rd-L42 | M52X2 | 42 | 300 | |
| Rd-S06 | M12X1.5 | 06 | 10 | 400 |
| Rd-S08 | M18X1.5 | 08 | 10 | |
| Rd-S10 | M16X1.5 | 10 | 15 | |
| Rd-S12 | M18X1.5 | 12 | 20 | |
| Rd-S14 | M22X1.5 | 14 | 45 | 315 |
| Rd-S16 | M24X1.5 | 16 | 70 | |
| Rd-S20 | M30X2 | 20 | 110 | 250 |
| Rd-S25 | M36X2 | 25 | 160 | |
| Rd-S30 | M42X2 | 30 | 200 | |
| Rd-S38 | M52X2 | 38 | 300 | |
| Rv-l06-G1/8 | G1/8 | 06 | 10 | 315 |
| Rv-l08-G1/4 | G1/4 | 08 | 10 | |
| Rv-l10-G1/4 | G1/8 | 10 | 15 | |
| Rv-l12-G3/8 | G1/4 | 12 | 20 | |
| Rv-l15-G1/2 | G1/4 | 15 | 45 | |
| Rv-l18-G1/2 | G1/2 | 18 | 70 | 250 |
| Rv-l22-G3/4 | G3/4 | 22 | 110 | |
| Rv-l28-G1 | G1 | 28 | 160 | |
| Rv-l35-G1 1/4 | G1 1/4 | 35 | 200 | |
| Rv-l42-G1 1/2 | G1 1/2 | 42 | 300 | |
| Rv-s06-G1 1/4 | G1 1/4 | 06 | 10 | 400 |
| Rv-s08-G1 1/4 | G1 1/4 | 08 | 10 | |
| Rv-s10-G3/8 | G3/8 | 10 | 15 | |
| RV-S12 G3/8 | G3/8 | 12 | 20 | |
| Rv-s14-G1/2 | G1/2 | 14 | 45 | 315 |
| Rv-s16-G1/2 | G1/2 | 16 | 70 | |
| Rv-520-G3/4 | G3/4 | 20 | 110 | 250 |
| Rv-s25-G1 | G1 | 25 | 160 | |
| RV S30-G1 1/4 | G1 1/4 | 30 | 200 | |
| Rv-s38-G1 1/2 | G1 1/2 | 38 | 300 | |
| Rz-l06-G1/8 | M12X1.5 | 06 | 10 | 315 |
| Rz-l08-G1/4 | M18X1.5 | 08 | 10 | |
| Rz-l10-G1/4 | M16X1.5 | 10 | 15 | |
| Rz-l12-G3/8 | M18X1.5 | 12 | 20 | |
| Rz-l15-G1/2 | M22X1.5 | 15 | 45 | |
| Rz-l18-G1/2 | M26X1.5 | 18 | 70 | 250 |
| Rz-l22-G3/4 | M30X2 | 22 | 110 | |
| Rz-l28-G1 | M36X2 | 28 | 160 | |
| Rz-l35-G1 1/4 | M45X2 | 35 | 200 | |
| Rz-l42-G1 1/2 | M52X2 | 42 | 300 | |
| Rz-s06-G1/4 | M12X1.5 | 10 | 10 | 400 |
| Rz-s08-G1/4 | M18X1.5 | 10 | 10 | |
| Rz-s10-G1/4 | M16X1.5 | 15 | 15 | |
| Rz-s12-G3/8 | M18X1.5 | 20 | 20 | |
| Rz-s14-G1/2 | M22X1.5 | 45 | 45 | 315 |
| Rz-s16-G1/2 | M24X1.5 | 70 | 70 | |
| Rz-s20-G3/4 | M30X2 | 110 | 110 | 250 |
| RZ - S25-G1 | M36X2 | 160 | 160 | |
| Rz-s30-G1 1/4 | M42X2 | 200 | 200 | |
| Rz-s38-G1 1/2 | M52X2 | 300 | 300 |
