Koperen binnen- en buitendraden Messing Fitting Verbind met Pipe Voor Water Olie Lucht
Contact Persoon : Ina Chen
Telefoonnummer : 0086-15168536055
WhatsApp : +8615168536055
| Plaats van herkomst: | China | Merknaam: | NBSANMINSE |
|---|---|---|---|
| Modelnummer: | FL-105-300 FL-105-350 FL-105-440 FL-105-600 FL-105-670 FL-105-A |
|
Gedetailleerde informatie |
|||
| Code: | FL-105-300 FL-105-350 FL-105-440 FL-105-600 FL-105-670 FL-105-A | Grootte (mm): | L 300 350 440 600 670 A L1 145 172 200 350 420 B D 115 ((105) D1 85 ((75) D2 65 ((55) |
|---|---|---|---|
| Deelnaam: | kleplichaam Afdichting Glaspakkingsglas | Materiaal: | Q235, gesmeed stalen buizengrafiet laag alkalisch hoog borosilicaat |
| Nominale druk: | 2.5 ((4.0) Mpa | Krachttestdruk: | 4.0(6.4) Mpa |
| Dichtheidstoetsdruk: | 2.5 ((4.0) Mpa | Operatietemperatuur: | ≤ 225°C |
| Werkmedium: | water, stoom, olie | ||
Productomschrijving

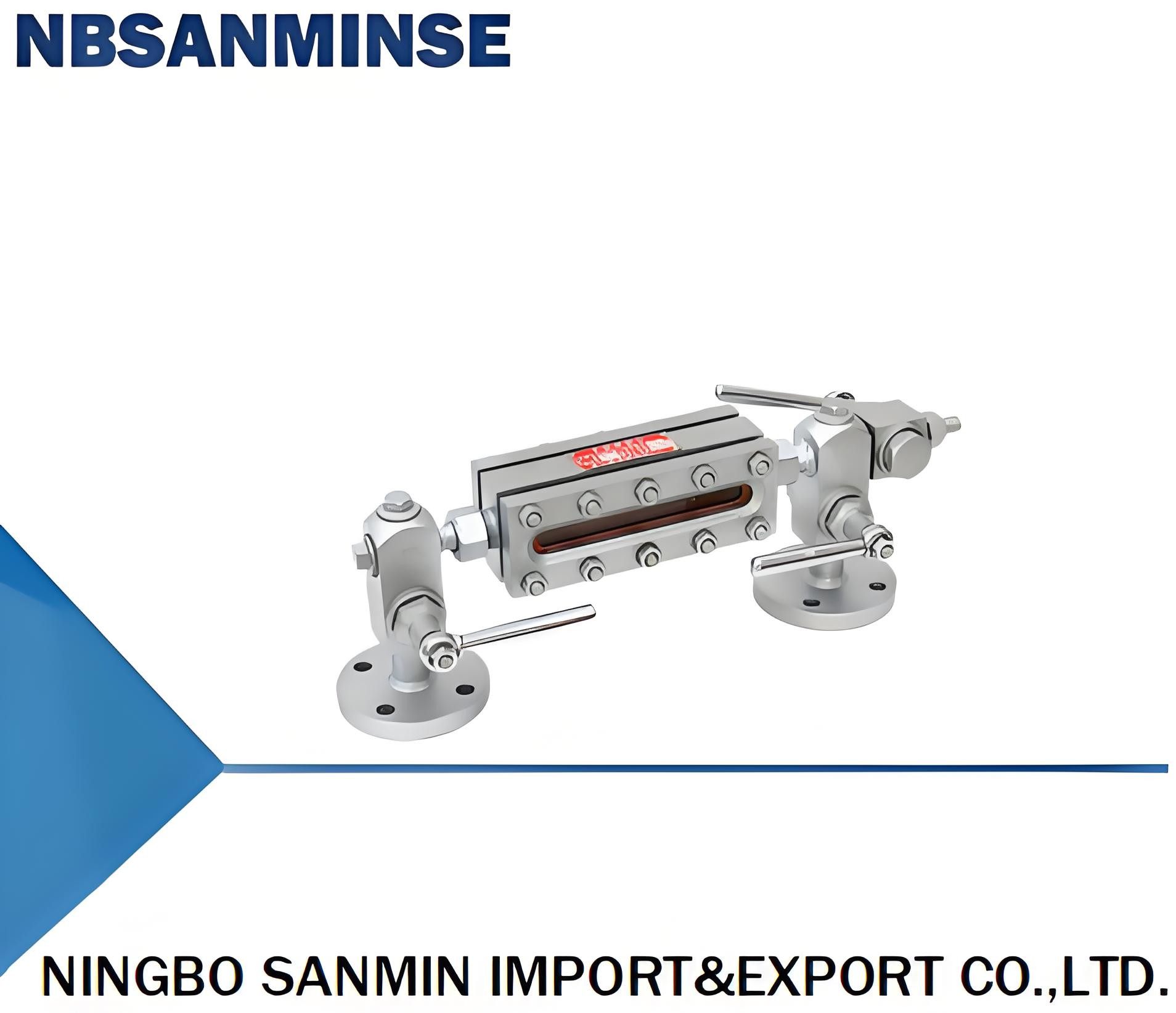

Hot spot of 105 steel flat plate level gauge: Advantages of flat plate level gauge: professional manufacturer | suitable for high temperature | good quality. Flat level gauges are suitable for various complex measurements, such as small dielectric constant media, large temperature and pressure changes, corrosive working conditions, media such as fly ash, and volatile corrosive liquid media Order now!
| code | size(mm) | Part name | material | ||||
| L | L1 | D | D1 | D2 | |||
| FL-105-300 | 300 | 145 | 115(105) | 85(75) | 65(55) | ||
| FL-105-350 | 350 | 172 | |||||
| FL-105-440 | 440 | 200 | valve body | Q235, forged steel | |||
| FL-105-600 | 600 | 350 | Sealing | bushing | |||
| FL-105-670 | 670 | 420 | Glass gasket | graphite | |||
| FL-105-A | A | B | glass | Low alkali high borosilicate | |||
| Nominal pressure | 2.5(4.0)Mpa | ||||||
| strength test pressure | 4.0(6.4)Mpa | ||||||
| Seal test pressure | 2.5(4.0)Mpa | ||||||
| operation temperature | ≤225℃ | ||||||
| Working medium | Water, steam, oil | ||||||
