Thuis ProductenHet Smeermiddel van de filterregelgeverQFRH Series of stainless steel pressure regulating filters

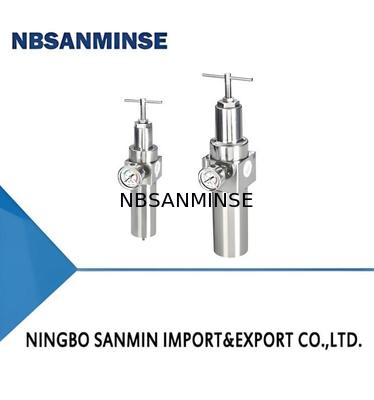

QFRH Series of stainless steel pressure regulating filters
QFRH Series of stainless steel pressure regulating filters
Contact nu

QFRH Series of stainless steel pressure regulating filters

Min. bestelaantal : 10 -stcs Prijs : Onderhandelbaar
Verpakking Details : Doos Levertijd : 5-30 dagen
Betalingscondities : L/c, t/t Levering vermogen : 10000 stcs
Plaats van herkomst: CHINA Merknaam: NBSANMINSE
Certificering: ISO9001 Modelnummer: QFRHB15 NCHW

Productomschrijving

QFRH B 15 N C H W
serial number pressure takeover caliber Pipe mouth screw thread filtration accuracy drainage method Windows
Stainless steel pressure regulating filter Blank: 12-28kgf/cm 08:G1/4" Blank: G PE filter cartridge Blank semi-automatic drainage Blank: None

B:0.5-12kgf/cm2 10:G3/8" N:NPT Blank: 5 μ m H: Manual drainage


15:G1/2" R:Rc C:40um D: Automatic drainage


20:G3/4"





25:G1"




model QFRH-08 QFRH-10 QFRH-15 QFRH-20 QFRH-25
The uses a fluid Compressed air
Connection Bore G1/4 G3/8 G1/2 G3/4 G1
Pressure Regulation Structure Piston Type
Body Material Stainless Steel SUS316
Cup Material Stainless Steel SUS316
Pressure Gauge Material Shell: Stainless Steel SUS304; Thread: Stainless Steel SUS316
Operating Pressure QFRHB:0.5-12kgf/cm²,QFRH:12~28kgf/cm²
Maximum Inlet Pressure 60kgf/cm²
Maximum Flow Rate(Vmin)(ANR) 2200 2500 3800 B8500/17000 B8900/21000
Ambient Temperature -10-70℃
Filter Cup Capacity 100cc 200cc
Standard Drainage Semi-automatic (requires draining below 0.5kgf/cm²)
Auxiliary Accessories Pressure Gauge (0~40kg), Plug
Optional Pressure Gauge (0~40kg), Pressure Gauge (0~60kg)


QFRH Series of stainless steel pressure regulating filters 0
