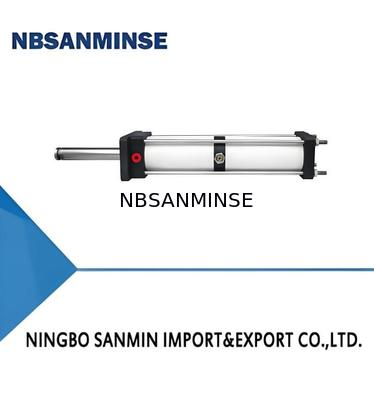

QGT Air Cylinder Large impact force generated by compressed air is applicable to printing blanking punching small air consumption

QGT Air Cylinder Large impact force generated by compressed air is applicable to printing blanking punching small air consumption
QGT Air Cylinder Large impact force generated by compressed air is applicable to printing blanking punching small air consumption

Grote Afbeelding :  QGT Air Cylinder Large impact force generated by compressed air is applicable to printing blanking punching small air consumption

Productdetails:
Plaats van herkomst: China
Merknaam: NBSANMINSE
Certificering: ISO9001
Modelnummer: QGT
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 10 STUKS
Prijs: Onderhandelbaar
Verpakking Details: doos
Levertijd: 5-30 dagen
Betalingscondities: L/C, T/T
Levering vermogen: 10000 stuks
Contact

QGT Air Cylinder Large impact force generated by compressed air is applicable to printing blanking punching small air consumption

beschrijving
Dempende hoek: 2~8 (graden) Gemiddelde en omgevingstemperatuur: -5~+60(℃)
beroerte S: 125 (mm) Maximaal impactwerk bij P=6bar: 31,6(≥N·m)
Materiaal: aluminium Impactfrequentie bij P=6bar: 60 (tijden/min)
Markeren:

QGT Model Pneumatic Air Cylinder

,

2~8 Degrees Cushioning Angle Pneumatic Air Cylinder

,

-5~+60℃ Operating Temperature Pneumatic Air Cylinder

I. Features
  1. Utilizes compressed air to generate large impact force, suitable for multiple applications such as printing, blanking, stamping, and assembly.
  2. Simple structure, low air consumption, and large impact force.
II. Model
QGT Air Cylinder Large impact force generated by compressed air is applicable to printing blanking punching small air consumption 0
① Cylinder Model
② Mounting Type (See Next Page)
③ Cylinder Bore (See Below Table)
④ Stroke (See Below Table)
III. Main Technical Parameters of Cylinder
Cylinder Bore(mm) Φ63 Φ80 Φ100 Φ125
Working Pressure(bar) 2~8
Working Medium Dried compressed air with oilmist,filtered to remove water
Medium and Ambient Temperature(℃) -5~+60
Stroke S(mm) 125  160  200  250
Maximum Impact Work at P=6bar(≥N ·m) 31.6  69  143  294
Stroke Corresponding to Maximum Impact Work(mm) 60  80  110  132
Impact Frequency at P=6bar (times/min) 60  50  40  30

 Note: The maximum impact work is at 0.55 S of the stroke in the table.

IV. Graphic Symbols and Mounting Types

SD (Basic Type)

QGT Air Cylinder Large impact force generated by compressed air is applicable to printing blanking punching small air consumption 1

J (Axial Foot Mount Type)

QGT Air Cylinder Large impact force generated by compressed air is applicable to printing blanking punching small air consumption 2

F (Rear Flange Type)

QGT Air Cylinder Large impact force generated by compressed air is applicable to printing blanking punching small air consumption 3

FQ (Front Flange Type)

QGT Air Cylinder Large impact force generated by compressed air is applicable to printing blanking punching small air consumption 4

QGT Air Cylinder Large impact force generated by compressed air is applicable to printing blanking punching small air consumption 5
