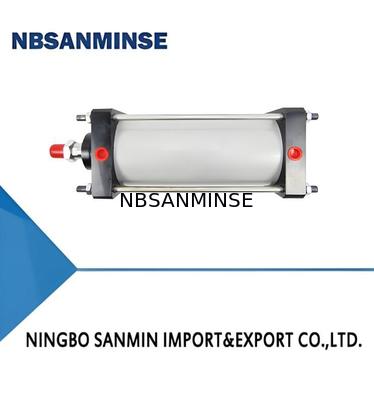

QGaB QGbB Piston rod diameter is larger than the standard size with good rigidity and can bear large loads

QGaB QGbB Piston rod diameter is larger than the standard size with good rigidity and can bear large loads
QGaB QGbB Piston rod diameter is larger than the standard size with good rigidity and can bear large loads

Grote Afbeelding :  QGaB QGbB Piston rod diameter is larger than the standard size with good rigidity and can bear large loads

Productdetails:
Plaats van herkomst: China
Merknaam: NBSANNINSE
Certificering: ISO9001
Modelnummer: QGaBQGbB
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 10 STUKS
Prijs: Onderhandelbaar
Verpakking Details: doos
Levertijd: 5-30 dagen
Betalingscondities: L/C, T/T
Levering vermogen: 10000 stuks
Contact

QGaB QGbB Piston rod diameter is larger than the standard size with good rigidity and can bear large loads

beschrijving
Werkdruk: 1,5~8 (bar) Proefdruk: 12 (balk)
Hartinfarct: 20~200 (mm) Bedrijfstemperatuur: -25 ~ +80(℃)
Vervelen: Φ40 (mm) Materiaal: aluminium
Markeren:

QGaB QGbB Model Pneumatic Air Cylinder

,

12 bar Proof Pressure Air Cylinder

,

1.5~8 bar Working Pressure Pneumatic Cylinder

I. Features

1.It is a derivative product of QGA and QGB series cylinders.

2.The piston rod diameter is larger than the standard size, with good rigidity and can bear large loads.

II. Graphical Symbols

QGaB QGbB Piston rod diameter is larger than the standard size with good rigidity and can bear large loads 0Cylinder without Cushion

QGaB QGbB Piston rod diameter is larger than the standard size with good rigidity and can bear large loads 1Cylinder with Cushion

III. Model

QGaB QGbB Piston rod diameter is larger than the standard size with good rigidity and can bear large loads 2

IV. Main Technical Parameters
Model QGAb,QGBb
Bore (mm) Φ40 Φ50 Φ63 Φ80 Φ100 Φ125 Φ160 Φ200
Stroke (mm) 20～200 25～250 30～300 40～400 50～1000 63～1250 80～1600 100～2000
Working Pressure (bar) 1.5～8
Proof Pressure (bar) 12
Operating Temperature Range (℃) -25 ～ +80 (under non-freezing conditions)
Working Medium Purified compressed air with oil mist

V. Outline and Installation Dimensions

QGaB QGbB Piston rod diameter is larger than the standard size with good rigidity and can bear large loads 3

Outline Drawing of QGAb Type Cylinder

QGaB QGbB Piston rod diameter is larger than the standard size with good rigidity and can bear large loads 4
