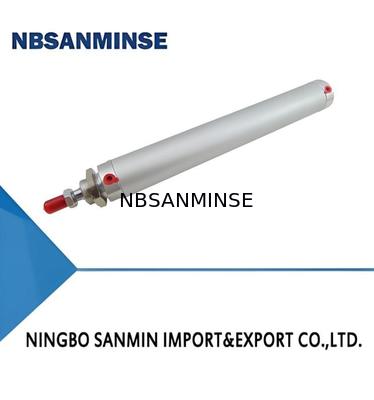

10Y-2 ISO Mini Air Cylinder Extremely Wear-resistant long service life

10Y-2 ISO Mini Air Cylinder Extremely Wear-resistant long service life
10Y-2 ISO Mini Air Cylinder Extremely Wear-resistant long service life

Grote Afbeelding :  10Y-2 ISO Mini Air Cylinder Extremely Wear-resistant long service life

Productdetails:
Plaats van herkomst: China
Merknaam: NBSANMINSE
Certificering: ISO9001
Modelnummer: 10Y-2
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 10 STUKS
Prijs: Onderhandelbaar
Verpakking Details: doos
Levertijd: 5-30 dagen
Betalingscondities: L/C, T/T
Levering vermogen: 10000 stuks
Contact

10Y-2 ISO Mini Air Cylinder Extremely Wear-resistant long service life

beschrijving
Model: 10Y-2 Proefdruk: 15 (bar)
Dempende vorm: kussenstootkussen Startstroom: AC220V
Bedrijfstemperatuur: -25 ~ +80℃ Materiaal:: aluminium
Markeren:

10Y-1 Model Pneumatic Air Cylinder

,

15 Bar Proof Pressure Air Cylinder

,

Cushion Pad Cushioning Pneumatic Cylinder

I. Features:

1.Parts are made of aluminum alloy, featuring light weight and small volume. The inner hole of the cylinder barrel is hard anodized, especially wear-resistant, with a long service life.

2.Installation dimensions comply with ISO (International Standard).

3.Oil-free (oil-lubricated is also available) lubrication, avoiding oil-gas pollution, and the oil mist lubricator can be omitted.

4.There are many varieties and specifications, and combined cylinders with switches and valves are available,

   saving pipe connection time and making maintenance and operation convenient.

II. Graphical Symbols and Appearance

10Y-2 ISO Mini Air Cylinder Extremely Wear-resistant long service life 0

III. Model

10Y-2 ISO Mini Air Cylinder Extremely Wear-resistant long service life 1

①  Cylinder Model See Cylinder Performance Table for details
② Installation Form See the diagram on the next page for details
⑤ Rear Cover Form See the diagram on the next page for details
Code S P K
 Name Basic Type Axial Port FD-13RV
⑥ Valve Operation Mode A: Push Type when Energized
B: Pull Type when Energized
⑦ Valve Operating Voltage 5:AC220V 50HZ
8:DC24V
⑧ Switch Model See Switch Performance Table for details
Code K H
 Name FD-03R FD-13RV
⑨ Number of Switches
⑩ Rod End Connection Accessories See Diagram 10Y-1 for details
IV. Main Technical Parameters
1.Main Technical Parameters of Cylinder
Variety Standard Type With Switch Type With Valve Type With Valve and Switch Type
Model 10Y-2 10Y-2R 10Y-2V 10Y-2K
Cylinder Bore (mm)   φ20,φ25,Φ32,φ40,φ50
Maximum Stroke (mm) Φ20:300,Φ25:400;Φ32:500;Φ40:600;Φ50:700
Maximum Stroke (mm)  No Limit 37   No Limit 37
Operating Pressure Range (bar) 0.5～10 1.5～10
Proof Pressure (bar) 15
Operating Speed Range (mm/s) 50～700 50～500
Operating Temperature Range (℃) -25 ～ +80 (under non-freezing conditions)
Working Medium Dry and Clean Compressed Air
Cushioning Form Cushion Pad
Oil Supply Not Required (Oil-lubricated is Also Available)

2. Main Technical Parameters of Switch

Model FD-03R
Operating Voltage Range 5～240V DC/AC
Operating Current Range 100mA(max)
Maximum Contact Capacity 10W(max)
Operation Time
Recovery Time

3. Main Technical Parameters of Valve

Parameter 2/5 Way Single Solenoid Operated Directional Valve
Variety A: Push Type when Energized B: Pull Type when Energized
Rated Voltage AC220V,50Hz;DC24V
Allowable Voltage Fluctuation ±10%
Starting Current AC220V,50Hz;0.028A
Holding Current AC220V,50Hz:0.015A;DC24V:0.09A
Power Consumption AC220V,50Hz:1.8W
DC24V:2.2W
Insulation Class B
Operating Pressure Range  1.5～10bar

V. Outline and Installation Dimensions

10Y-2 ISO Mini Air Cylinder Extremely Wear-resistant long service life 2

10Y-2 ISO Mini Air Cylinder Extremely Wear-resistant long service life 3

10Y-2 ISO Mini Air Cylinder Extremely Wear-resistant long service life 4

Note:

1.The dimensions of cylinder accessories for the 10Y-2 series cylinders are the same as those for the 10Y-1 cylinders with Φ20～Φ50. Therefore, when calculating the installation dimensions of 10Y-2 cylinders, they can be calculated by referring to this table and the dimensions of cylinder accessories for the 10Y-1 series.

2.The SD, FA, and LS installation forms for the 10Y-2 (Standard Type) cylinders with bore sizes Φ20 and Φ25 comply with ISO.

3.Please refer to the installation forms and rod end connection forms of the 10Y-1 series for the installation forms and rod end connection forms of 10Y-2 with Φ20～Φ50.

label:

geleide pneumatische cilinder,

SMC-luchtcilinders,
