Productdetails:
|
| Temperatuur: | (-20℃~+60℃) | Vermogensniveau: | <0,8 W |
|---|---|---|---|
| Functietype: | 3 Poort 2 Positie | Luchtverbinding: | 1/4G-buistype |
| Installatie: | Elke positie | Media: | Lucht + lnertgas |
Introduceer:

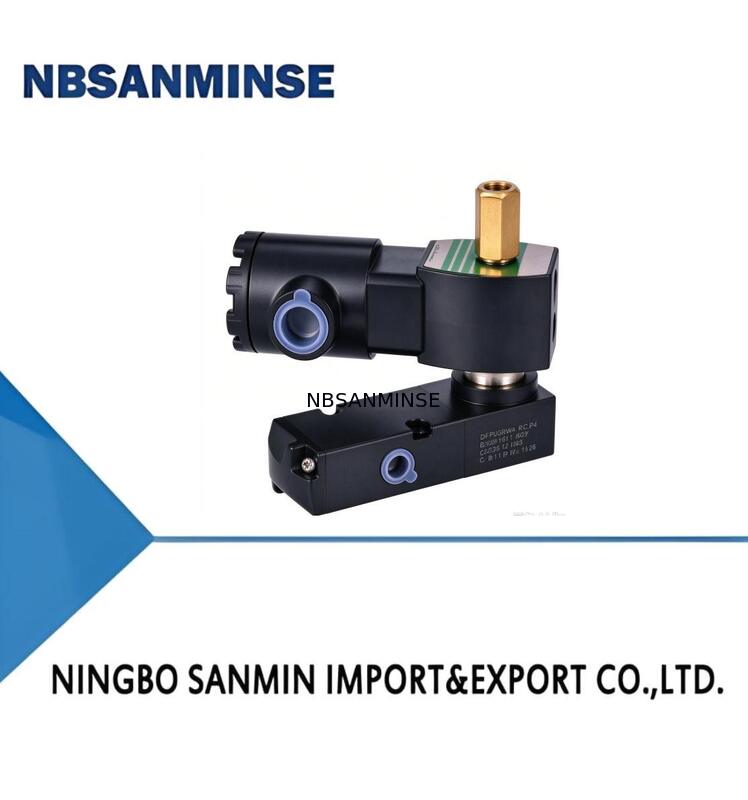

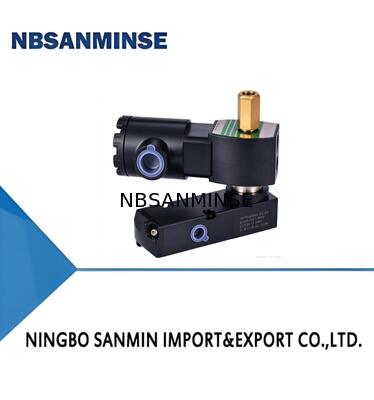

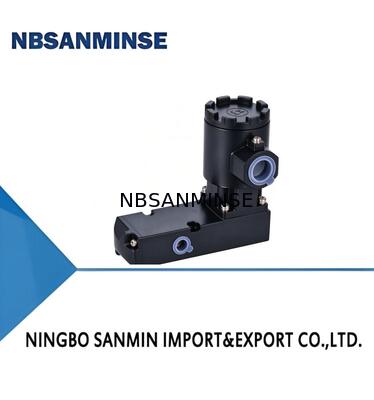

LV600 series solenoid valve, solenoid valve are suitable for use in conjunction with pneumatic control valve and piston actuator in most of process production.De solenoïde valve speelt alleen een hulpfunctie.Vooral in de procesproductieketen speelt de magnetische klep een zeer belangrijke rol.de gasbronfout regelt de openings- en sluitsituatie van het procesklepWanneer de veiligheid van de productieproces valuaire werking vereist, moeten de meeste van hen worden bestuurd door magnetische kleppen.natuurgas en chemische industrie en kan ook voldoen aan de applicatievereisten van snelle reactie en high-frequency service life op industriële automatisering control systems.
Kenmerken:
IEC61508 functional safety standard compliance, TÜV certified Safety Integrity Level SIL3
Single en dual solenoid constructies
Static sealing design.
Intrinsieke veiligheid Spiraal
Low power consumption beschikbaar
Vrije richting voor solenoïde operator of vier vaste richtingen.
Handmatige operators beschikbaar
External/Internal pilot beschikbaar
Threaded port connections en NAMUR interface
Functie:
![]()
Technische specificaties
| Artikel 1 | Eenvoudige spoel/dubbele spoel |
| PILOT Categorie | Type piloot |
| Media | Lucht + inert gas |
| GERENAMEERDE omgevingstemperatuurbereik | - 60°C ~ 60°C |
| Medium temperatuur | - 60°C ~ 60°C |
| Bedieningsdrukverschil | 0 tot 145 psi ((0 tot 10 bar) |
| Flow coefficiënt | 1.11Cv (1,06Kv) m3/h15.92Kw/m-in1/4" 3.85Cv (3.30Kv) m3/h55.00Kw/m-in1/2" 1.11Cv (1,06Kv) m3/h15.92Kw/m-in1/4" 3.85Cv (3.30Kv) m3/h55.00Kw/m-in1/2" |
| Valve Construction. | Spoelstructuur of jasstructuur |
| BODY MATERIAL | Aluminium/koper/roestvrij staal |
| APPLICATION ENVIRONMENT | Binnen/buiten |
| Installatie | Elke positie |
| IP RATED | IP65 |
| Handmatige bediener | Inclusief door verstek |
Solenoïde-operatoren
| Watt rating energieverbruik | DC Watts. | 0.8W 1.5W 24V |
LV600 PBA PSFBA SC N 14NG 3 P 2 ST * 24VDC
| PRODUCTSERIEEN | LV600. | Serie LV600 |
| Valve body vorm en materiaal | PBA | Materialen van aluminiumlegeringen van het piloottype |
| PBS | Pilottype roestvrij staalmateriaal | |
| Coil Categorie | PSFBA | Aluminiumlegeringsverbindingsdoos met gietdicht |
| PSFBS | Stainless steel verbindingsdoos met gietdicht | |
| FBA | Explosiebestendige aluminium allooi. | |
| FBS | Explosie-proof stainless steel. | |
| Besturingsmodus | SC | Single electric control. |
| D.C. | Dubbele elektrische besturing. | |
| Elektrische interface | N | 1/2NPT 1/2NPT |
| G | 1/2 g 1/2 g | |
| M | M20 x 1,5 M20 x 1.5 | |
| Luchtverbinding | 14NG. | 1/4NPT-pijptype |
| 14 NB | 1/4NPT Namur Type | |
| 38NG. | 3/8NPT-pijptype | |
| 38 NB | 3/8NPT Namur Type | |
| 12NG. | 1/2NPT-pijptype | |
| 12 NB | 1/2NPT Namur type | |
| 14G | 1/4G type pijp. | |
| 14 GB. | 1/4G Namur type. | |
| 38G. | 3/8G-pijptype. | |
| 38 GB. | 3/8G Namur Type | |
| 12G | 1/2G type pijp. | |
| 12 GB | 1/2G Namur type. | |
| Function type | 3 | 3 Port 2 Positie |
| 5 | 5 Poort 2 Positie | |
| 35P. | 5/3 drukcentrum. | |
| 35C | 5/3 gesloten centrum. | |
| 35E | 5/3 uitlaatcentrum. | |
| Vermogensniveau | P | < 0,8 W |
| LP | 3W | |
| Handmatige bediener. | 1 | Geen handmatige bediening. |
| 2 | met handmatige bediening | |
| Temperatuur | ST | (-20°C~+60°C) |
| OL | - 40°C tot + 60°C | |
| Speciaal | * | Speciaal op aanvraag. |
| Spanning | 24VDC |
Special options are available upon the equipment. Speciale opties zijn beschikbaar op de apparatuur.
Refer to the product datasheet for details.
